Aluminum cleat
Aluminum cleat

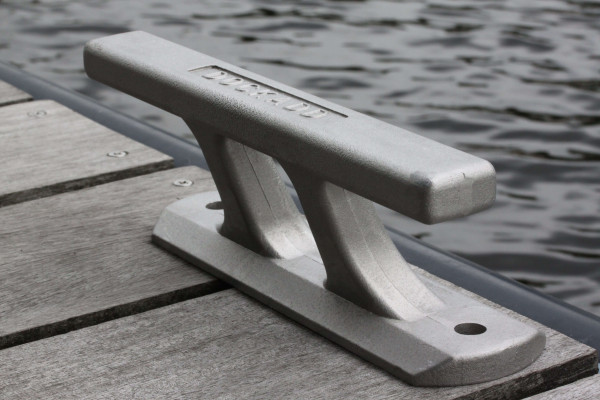

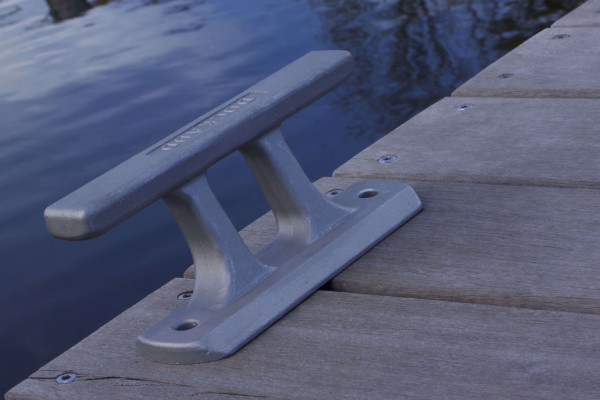

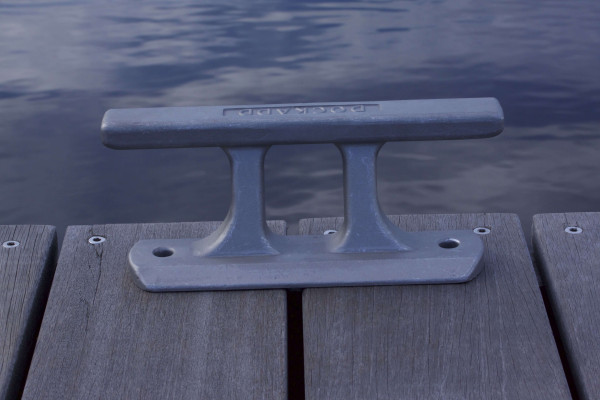

The aluminum bollard can be easily attached to your existing dock. To attach the aluminium bollard, 2 wood thread bolts are used in the size M10 or M12. Once attached, the aluminium bollard acts as a safe mooring point for your boat.
The angled corner provides the aluminum bollard with stronger grip.
The aluminum bollard has been tested and can withstand a pulling force of 4 tons.

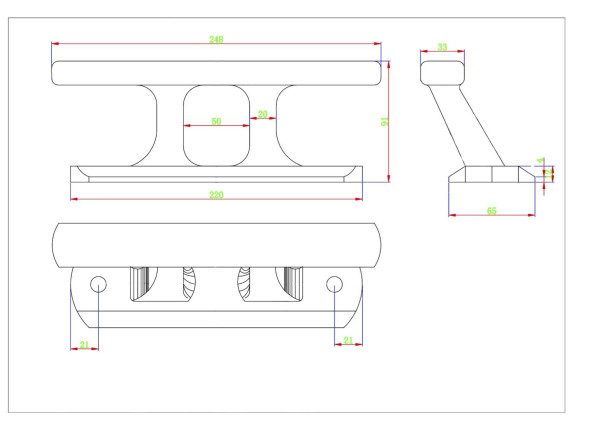

Specifications:
Length: 250 mm
Width: 80mm
Total height: 91 mm
Base plate: 220 x 65 mm
Thickness base plate: 12 mm
Number of screw holes: 2
Diameter screw hole: 12 x 12 mm (square)
Weight: 0.90 kg
Pulling force: 4 tons
Attachment:
2 x M10 with nylon ring
or
2 x M12 with nylon ring
or
2 x stainless steel M10 slot bolt x length is dependent on your dock construction.
Fixing material is not included. More information about the wood thread bolts can be found in the category "assembly material".
