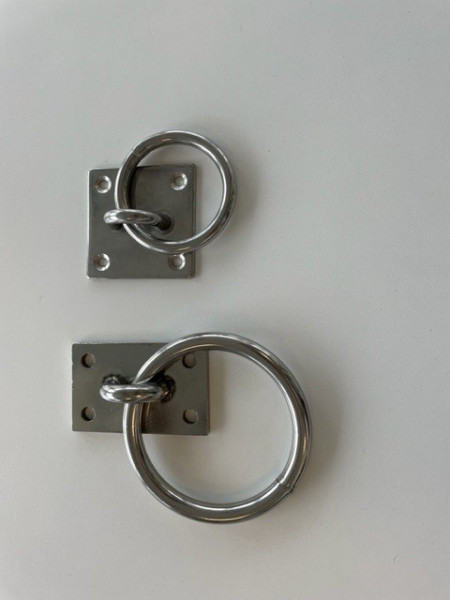

Mooring ring AISI 316 Stainless Steel - rectangular footplate
Mooring ring AISI 316 Stainless Steel - rectangular footplate
In stock
€20,25
SKU : 34.114.14

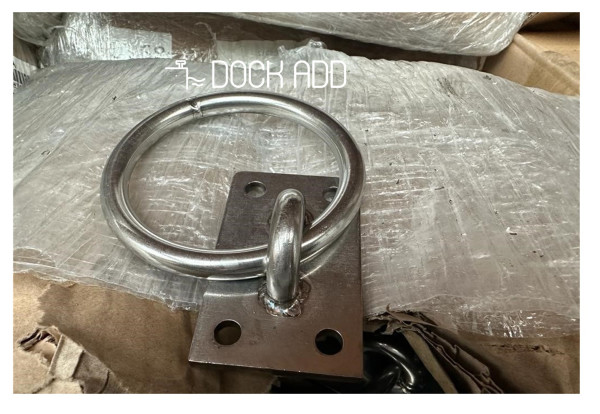

This RVS316 mooring ring is equipped with a heavy (diameter 100mm) mooring ring and a rectangular base plate with a width of 50mm, making it easy to mount on a beam of the jetty.
Specifications:
Base plate length: 80 mm
Base plate width: 50 mm
Base plate height: 7 mm
Total height: 35 mm
Ring diameter: 100 mm
Ring thickness: 10 mm
Number of screw holes: 4
Screw hole diameter: 8 mm
Weight: 0.33 kg
Installation advice (not included):
4 pieces of M8 wood screw bolt + nylon ring, length dependent on scaffold
See mounting material for more information.
